Turning a physical object into a digital model can simplify many 3D printing projects. A 3D scanner can capture an object’s shape and create digital data that can be edited and prepared for printing. This can be useful for replacement parts, prototypes, custom designs, collectibles, and other projects that begin with a physical object.
Choosing the right 3D scanner starts with understanding how the main technologies work. Structured light, laser, and LiDAR scanners can all capture three-dimensional information, but they use different measurement methods and suit different applications. The right choice depends on factors such as object size, surface detail, scanning distance, and the intended use of the finished model.
How 3D Scanning Technology Works
Most 3D scanning workflows begin by collecting measurements from an object’s surface. The scanner processes this information into a point cloud, which can then be converted into a polygon mesh for editing and further use.
A point cloud is a collection of data points representing an object’s surface. A mesh connects those points to create a digital surface. After cleanup and editing, the model can be prepared for applications such as 3D printing.
The measurement method varies by technology. Structured light projects known patterns onto an object and uses cameras to observe changes in those patterns. Laser scanners use laser light to capture measurements from the object’s surface, while LiDAR measures distance by analyzing returned light signals.
Structured Light 3D Scanners
Structured light scanners project a known pattern onto an object’s surface. Cameras capture the pattern, and software analyzes how it changes across the object to calculate three-dimensional geometry.
This approach can be useful for detailed object scanning when the subject fits within the scanner’s working range. It can suit projects where preserving the shape and surface features of an existing object is important.
Scanning conditions still matter. Reflective, transparent, or translucent surfaces can be more difficult to capture, while movement and unsuitable lighting can affect the resulting data.
Where Structured Light Works Well
Structured light can be useful for:
- Small and medium-sized objects
- Replacement components
- Mechanical parts
- Figurines and decorative objects
- Prototypes
- Creative and hobby projects
For scan-to-print work, it provides a practical way to turn an existing physical object into editable digital geometry.
Laser 3D Scanners
Laser scanners use laser light to capture measurements from an object’s surface, with the exact method depending on the system. As measurements are collected from different areas, software can combine them into a three-dimensional representation.
Laser scanning can accommodate different object sizes and geometries, depending on the scanner’s design and working range. Handheld systems can also provide flexibility when different areas need to be captured from multiple angles.
Laser scanning can be useful when working range, portability, or flexible capture is important. Surface characteristics still need attention, since very dark, reflective, or transparent materials can be challenging for some optical scanning systems.
Where Laser Scanning Can Help
Laser scanning can be useful for:
- Complex mechanical components
- Larger objects
- Sculptures
- Equipment
- Furniture
- Reverse-engineering projects
The appropriate system depends on the object’s size, required detail, working range, and scanning conditions.
LiDAR 3D Scanners
LiDAR stands for Light Detection and Ranging. It measures distance by emitting light and analyzing the returned signal. Multiple measurements can then be combined into a three-dimensional point cloud.
LiDAR can be useful for larger subjects and spaces where longer measurement distances are important. Depending on the system, applications can include rooms, buildings, vehicles, terrain, and other large environments.
This makes LiDAR different from systems designed primarily for detailed capture of smaller objects. For a small mechanical component, surface detail may be the priority. For a room or large structure, broader spatial coverage may matter more.

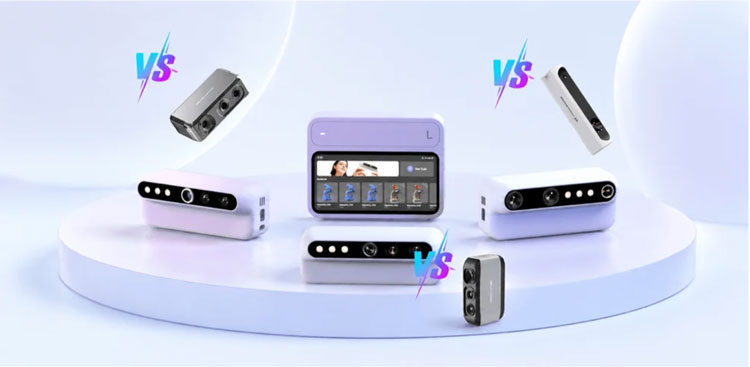

3D Scanner Comparison: Which Technology Fits the Project?
Each technology serves a different purpose, so there is no single option that fits every project. The right choice depends on the object’s size, required detail, scanning environment, and intended result.
| Technology | Primary Strength | Suitable Applications | Typical Scale | Key Consideration |
| Structured Light | Detailed surface capture | Small to medium objects, parts, prototypes | Small to medium | Surface and lighting conditions matter |
| Laser | Flexible surface measurement | Complex parts, equipment, sculptures, larger objects | Small to large, depending on system | Working range and surface characteristics matter |
| LiDAR | Long-range spatial measurement | Large objects, spaces, vehicles, environments | Medium to large | Suited to broader spatial measurement |
For small and medium objects intended for 3D printing, structured light can be a practical starting point. Laser scanning can help with complex geometry and flexible capture, while LiDAR becomes more relevant when the project involves larger-scale spatial information.
The scanning method is only one part of the decision. Accuracy, resolution, working distance, tracking, software, and supported file formats can also affect the workflow.
3D Scanner Features That Affect the Workflow
Technology is only one part of choosing a scanner. Several practical features can affect how well a system fits a project.
Accuracy
Accuracy describes how closely captured measurements represent the physical object. It becomes particularly important when a scanned part needs to fit an existing component.
Published accuracy figures should be viewed within the conditions under which they were measured. Scanning technique, surface properties, alignment, and environment can all influence results.
Resolution
Resolution relates to the amount of detail represented in captured data. Higher resolution can help preserve smaller surface features, but resolution and accuracy are different measurements.
Working Distance and Object Size
Every scanner operates within a practical range. Matching its working distance and intended object size to the project can make scanning easier and more consistent.
A scanner designed for small components may not be efficient for a vehicle or room, while a long-range system may provide more coverage than a small scan-to-print project requires.
Software and File Formats
The scan is only the beginning. Digital data may need alignment, cleanup, scaling, or other adjustments before printing. Support for common file formats can also simplify movement between scanning, editing, CAD, and slicing software.
Surface Compatibility
Reflective, transparent, translucent, or very dark materials can affect optical scanning. Depending on the system, additional preparation may be needed to capture these surfaces effectively.
Choosing a 3D Scanner for the Workflow
The differences between scanning technologies become more useful when applied to a specific project. Once the object’s size, required level of detail, working distance, and scanning conditions are clear, these factors can guide the search for a suitable scanner. For readers ready to explore specific models, 3DMakerpro provides 3D scanning solutions that can be matched to these practical requirements.
A scanner that works well for small mechanical parts may not be the right fit for large objects. Similarly, a system designed for broader spatial capture may provide more capability than a simple scan-to-print project requires.
Practical Tips for Better Scan-to-Print Results
A good scanning workflow starts with preparation:
- Plan the scan: Identify the surfaces that need to be captured and areas that may require additional viewpoints.
- Keep the object stable: Movement can make alignment more difficult and leave incomplete areas.
- Capture enough viewpoints: Scan around the object systematically so important surfaces are not missed.
- Check challenging surfaces: Reflective, transparent, translucent, and very dark materials may require additional preparation.
- Inspect the digital model: Check for holes, unwanted fragments, missing surfaces, and alignment problems before exporting.
- Test before the final print: A small test print can reveal scale or fit issues before the final print.
Conclusion
Structured light, laser, and LiDAR each provide a different approach to 3D capture. Structured light can be useful for detailed object scanning, laser systems can offer flexible capture across different object sizes and geometries, and LiDAR can be useful when longer-range spatial measurement is required.
For scan-to-print projects, the right choice starts with the application rather than a single specification. Consider the object’s size, surface characteristics, required detail, working distance, software support, and the editing required after capture. These factors can help users select a scanning technology that fits the workflow from physical object to usable digital model.
